Free, simple, and intuitive online database diagram editor and SQL generator.
10b7dc3283
When exporting a diagram that contains a table with indices to JSON then importing it, an validation error occurs because the schema for the index on the table was not correctly setup leading to the file being considered an invalid json. |
||
|---|---|---|
| .github | ||
| public | ||
| src | ||
| .dockerignore | ||
| .env.sample | ||
| .eslintrc.cjs | ||
| .gitignore | ||
| .prettierrc.json | ||
| compose.yml | ||
| CONTRIBUTING.md | ||
| Dockerfile | ||
| drawdb.png | ||
| index.html | ||
| LICENSE | ||
| package-lock.json | ||
| package.json | ||
| postcss.config.js | ||
| README.md | ||
| tailwind.config.js | ||
| vercel.json | ||
| vite.config.js | ||
Special thanks to:
Next-gen AI-powered intelligent terminal for all platforms
Next-gen AI-powered intelligent terminal for all platforms
drawDB
Free, simple, and intuitive database schema editor and SQL generator.

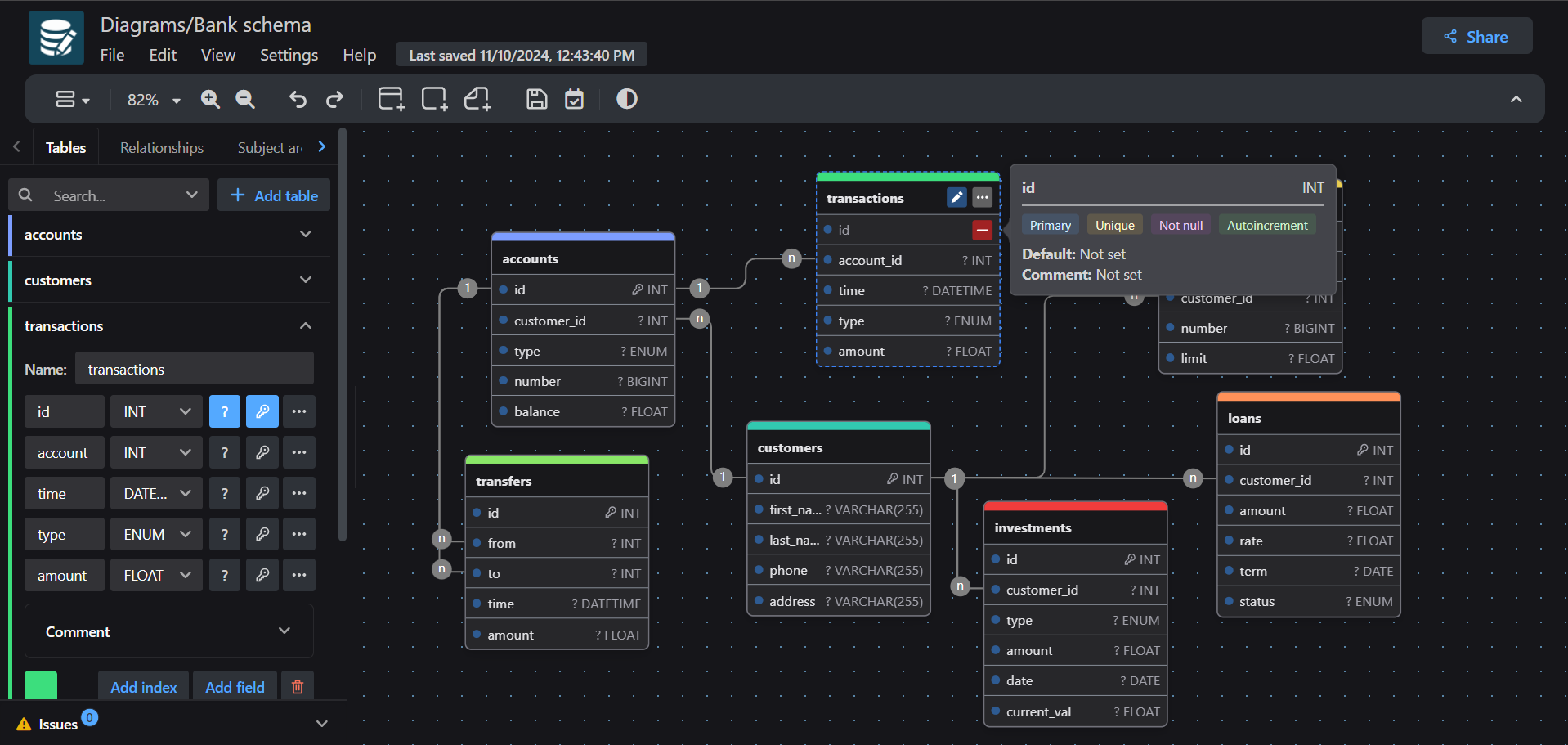

DrawDB is a robust and user-friendly database entity relationship (DBER) editor right in your browser. Build diagrams with a few clicks, export sql scripts, customize your editor, and more without creating an account. See the full set of features here.
Getting Started
Local Development
git clone https://github.com/drawdb-io/drawdb
cd drawdb
npm install
npm run dev
Build
git clone https://github.com/drawdb-io/drawdb
cd drawdb
npm install
npm run build
Docker Build
docker build -t drawdb .
docker run -p 3000:80 drawdb
If you wish to work with sharing, set up server and environment variables according to .env.sample. This is not required unless you want to share files.
